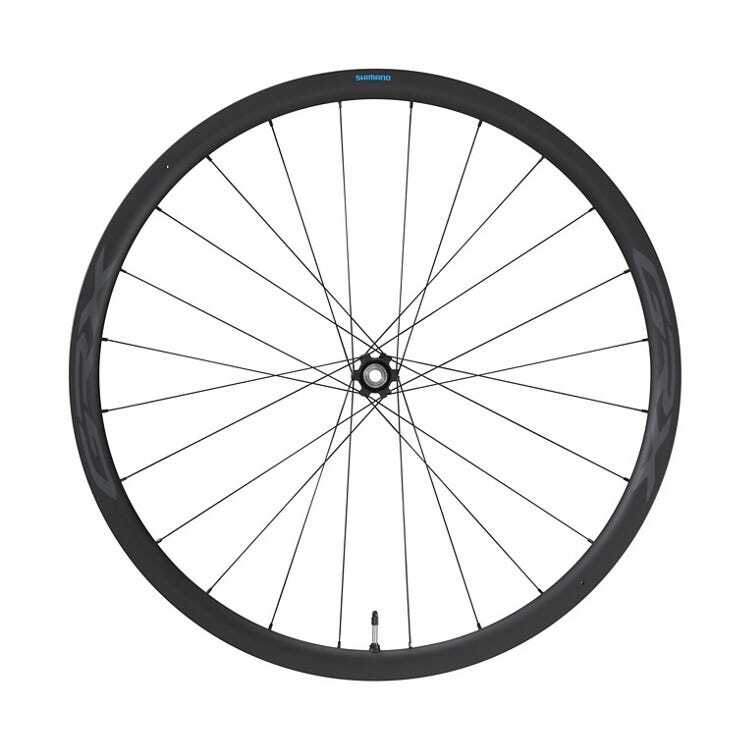

Shimano WH-RX870 GRX Tubeless Road Front Wheel 700C

Shimano WH-RX870 GRX Tubeless Road Front Wheel 700C

The new Shimano WH-RX870 GRX Tubeless Road Front Wheel supports gravel rides that are faster, further, and more fun. Wider tires need wider rims to maintain lateral tire stability at low air pressures. Shimano studied the complicated relationship between tire size, rim width, air pressure, and tire lateral rigidity to optimize the GRX rim width for 32-50c tires. In addition, Shimano pursued the best balance of rim weight, strength, and profile in order to deliver an exceptional gravel wheel.

FEATURES

• First SHIMANO GRX carbon wheel
• 32 mm height full carbon rim
• Internal rim width: 25 mm
• Recommended tire size: 32-622 - 50-622
• Road 11 & 12-speed compatible
• Centrelock

SPECIFICATIONS

• MODEL NO    WH-RX870-TL-F12-700C
• SERIES    GRX Limited RX810 Series
• Average weight    639
• Model name    WH-RX870-TL
• Specification    F12-700C
• Color|1 Hub shell    Black
• Front/Rear    Front
• Brake type    CENTER LOCK disc brake
• O.L.D. (mm)    100
• Wheel Size    622 x 25C (700C)
• Tire|Type    Tubeless
• Tire|Recommended size    32-622 - 50-622
• Rim|Height (mm)    32
• Rim|Internal width (mm)    25
• Rim|External width (mm)    30.7
• Rim|Requires rim tape    ✔
• Spokes|Number    24
• Spokes|Straight pull    ✔
• Spokes|Bladed    ✔
• Spokes|Butted    ✔
• Spokes|Diameter (mm)    2.0-1.6-2.0
• Axle fixing method    E-THRU
• Thru axle (length x inner diameter ; mm)|100 x 12    ✔
• Disc mount|CENTER LOCK    ✔
• Disc mount|140 mm Disc brake rotor compatible    ✔
• Seal|Hub    Contact
• Reflector|JIS/CPSC    CATEYE RR-550-WUW SW
• Reflector|AS    CATEYE RR-550-WUA SW
• Reflector|DIN    CATEYE RR-317-WUA SW
