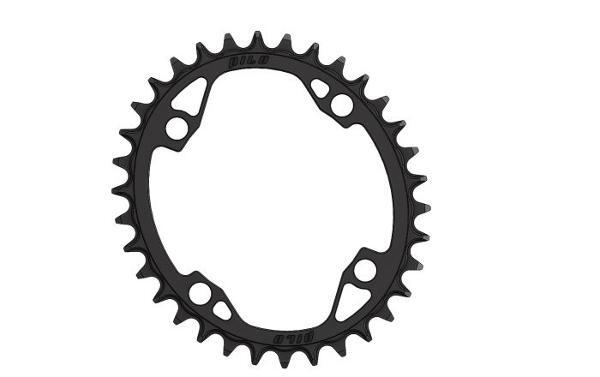

Pilo Chain Ring - 34T Narrow Wide Elliptic - 104BCD Offset 0

PILO C64 - 34T Narrow wide Elliptic Chainring for 104BCD cranks.

FEATURES
• PILO Precise CNC Chainring milled from 7075 T7351 especially made aircraft grade Aluminium plate.
• The material we are using is made by Constellium Switzerland.
• Pilo tooth geometry is highly engineered, based on DIN8196 (ISO), tested and proved to be the best, we did not invent anything.
• CNC chainring is durable, quiet in operation, and works exceptionally well.
• Crankset compatibility: various manufactures, the legendary 4 bolts 104 BCD.
• Chain Compatibility: all 10, 11, and 12-speed standard chains except for Hyperglide 12s.
• Pilo 34T elliptic profile tec specification: Lower gear equivalent to circular 32T chainring, Upper gear equivalent to circular 36T chainring.
• Eccentricity: 12.5%.
• Positioning relative to the crank's arm: 112 degrees counterclockwise.
• Outer diameter: 153mm.
• Offset: 0mm.
• Weight: only 48 grams.
• Chainline: this Standard is controlled by the crank, all cranks use the same chainrings.
• E-bike proved.
• Finish: Hard Black Anodized.
