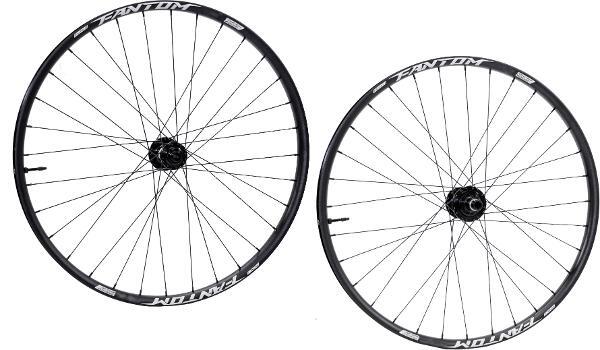

Funn Wheelset - Fantom AM35 (Int 30mm) - Mullet 29/27.5 Inch - 32H - 6 Bolt Disc Mount - F:110/15mm R:148/12mm - Shimano Micro Spline Drive Body

Bombproof and lightning-fast wheels.

The Fantom AM35 is for the trail and enduro riders. Designed to be lightweight and fast-rolling with a 35mm external/30mm internal width for the perfect balance of speed and control.

Funn Fantom wheelsets are the complete package, pairing Funn Fantom hubs and rims to create a lightweight, tough and fast wheel for everything from downhill to trail to gravel. Our wheels are available in 27.5" and 29" and Boost/Non-Boost.

The Fantom hub is precision-engineered from AL6061 with a quick-engagement 6 pawl and 102T design.

The Fantom rim is a bombproof and lightweight design, made from welded AL6066 with a sandblasted black anodised finish.

Fantom wheels are tubeless-ready and come supplied with tubeless rim tape and valves.



Technical

Intended use	Trail / Enduro
Tubeless-ready	Supplied with tubeless tape and 2 x valves



Available sizes	27.5"	29"
Weight	1895g (Non-boost) 1925g (Boost)	1965g (Non-boost) 1995g (Boost)
Spoke count	Front 32H Rear 32H	Front 32H Rear 32H



Funn Fantom Rim

Valve standards	Presta
Axle standard front	15x100mm  / 15x110mm
Axle standard rear	12x142mm / 12x148mm
Rim width external	35mm
Rim width internal	30mm
Rim depth	18mm
Rim eyelet	No
Rim material	Welded 6066 Alloy
Finish	Sandblasted Anodized Black



ETRTO	584×35	622×35
ERD	566.5mm	604mm



Funn Fantom Hub

Engagement	Fantom 102T quick engagement
Cassette body	Shimano HG / SRAM XD / Shimano Micro Spline
Hub body	6061 Alloy
Compatibility	100mm front/142mm rear hubs can be converted to QR standard. Cassette body is convertible between Shimano and SRAM standards.



Spokes

Butting	Double-butted
Spoke count	32h each wheel
Nipple	Brass
